Make A Time Picker In Power Apps
I often wonder why there is not any Time Picker control included in Power Apps. Date and Time values are found in almost every app I’ve ever made and I’m not alone. At least 14,000 people have read this forum post looking for an answer. Yet, we still have to build it ourselves. In this article, I will show you how to make a Time Picker in Power Apps as shown in the image below.
Building the Hours Gallery
A Time Picker control is something you will use over-and-over again so its best to build it as a canvas app component. Open Power Apps Studio and go to the Components screen. Create a new component called cmp_TimePicker.

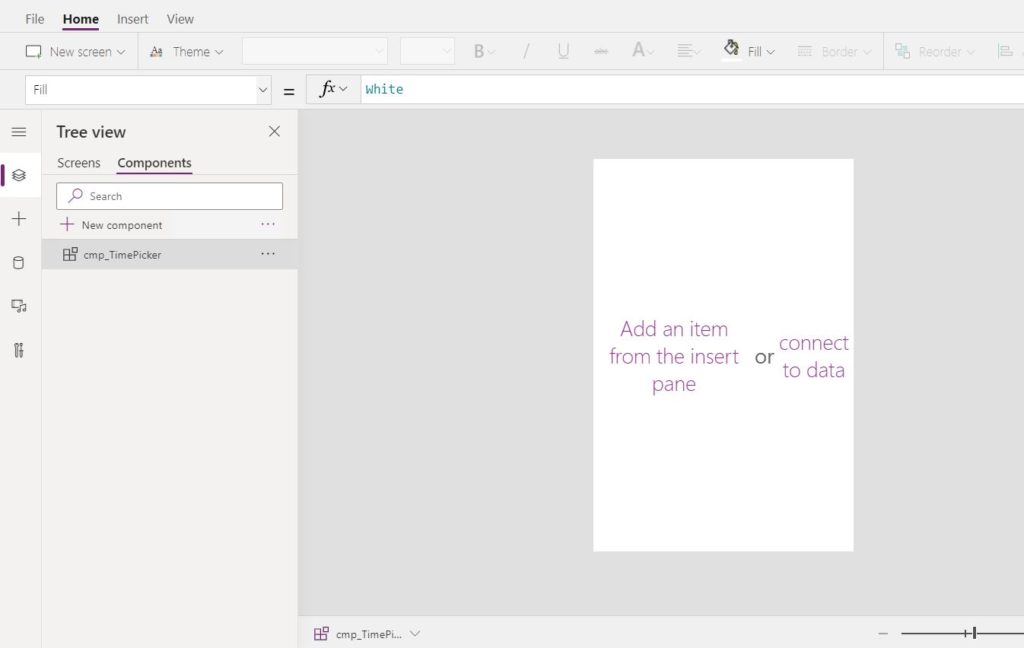

The component cmp_TimePicker should have these properties.
Fill: White
Height: 430
Width: 285

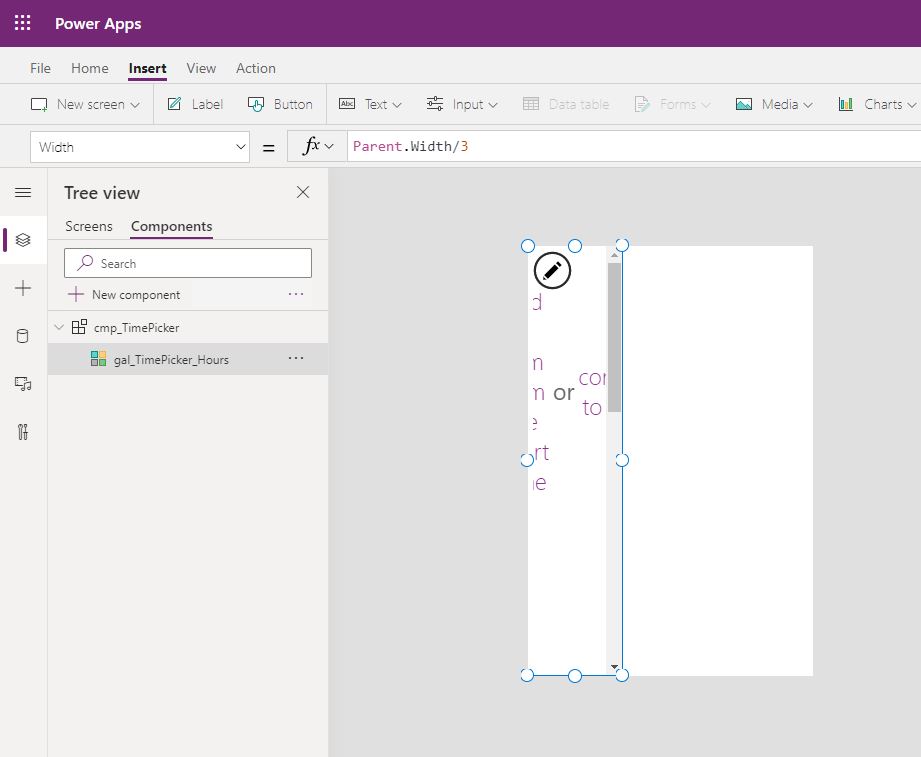

Next, add a new gallery to the component called gal_TimePicker_Hours.
The gallery should have the same height as the component and 1/3 of the width of the component to allow for hours, minutes and AM/PM. Use the properties below in the gallery.
Fill: Transparent
Height: Parent.Height
TemplateSize: 60
Width: Parent.TemplateWidth/3
To populate the gallery with Hours we can put a Sequence function in the Items property. We’ll format the number with a leading zero too for consistency.
ForAll(Sequence(12), Text(Value,"[$-en-US]00"))
Now place a label called lbl_MobileTimePicker_Hours in the gallery with the code ThisItem.Value in the Text property to see the options for hours.
Styling the Component
We should style the Hours gallery before moving onto the Minutes and AM/PM galleries. That way we can copy & paste the 1st gallery and code the style only once. Set the properties of lbl_TimePicker_Hours equal to the code shown below.
Align: Center
Color: Black
Height: Parent.TemplateHeight
Text: ThisItem.Value
Width: Parent.TemplateWidth
X: 0
Y: 0

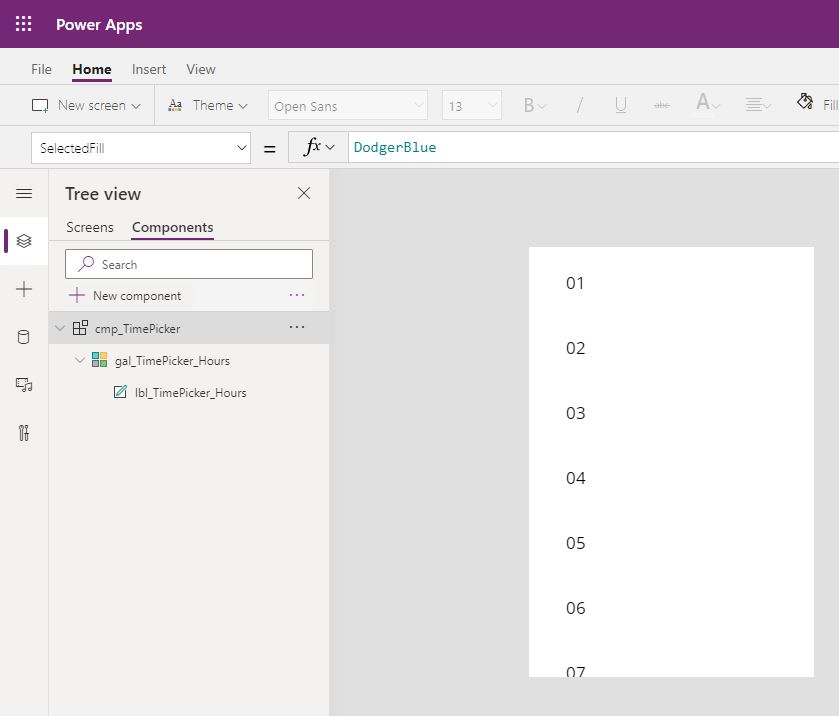

We want to change the color of the Hours gallery item to show what the user has selected. This component could be re-used in several apps so its a good idea to create new properties to control the label’s color and fill. Make two new input properties called SelectedColor and SelectedFill.

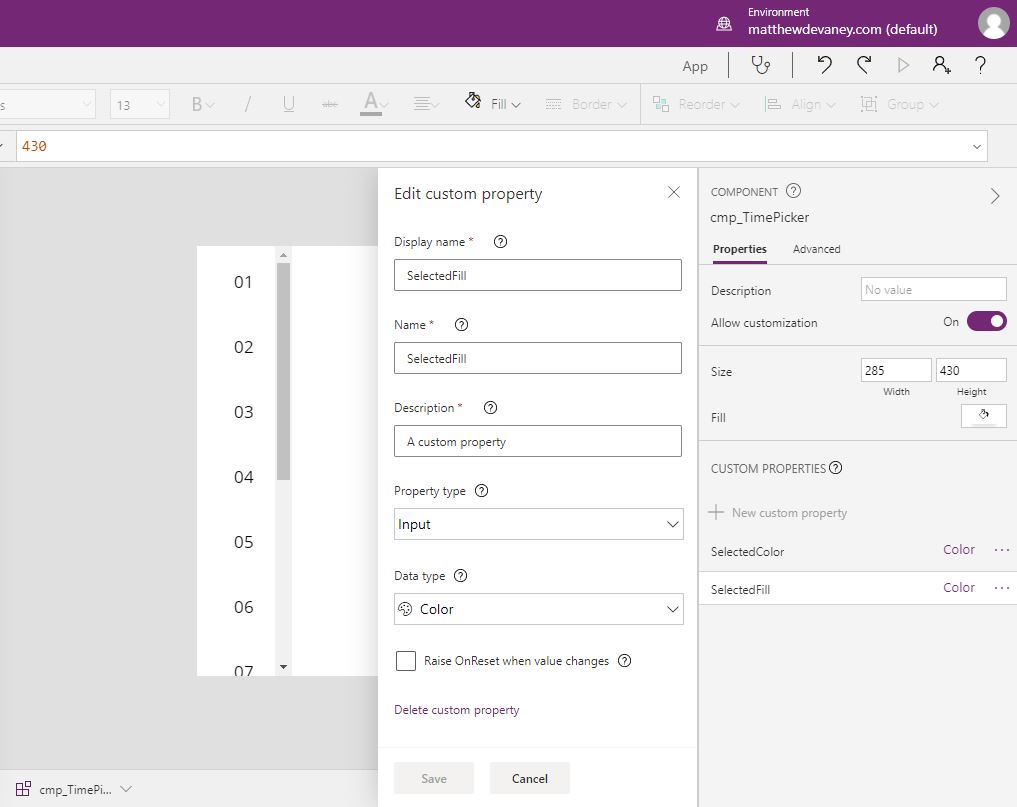

Then add this code to the properties for cmp_TimePicker.
SelectedColor: White
SelectedFill: DodgerBlue
Now that we’ve setup everything that’s needed our goal will be to make the TimePicker component behave like this.
Write this code in each respective property of lbl_TimePicker_Hours to get the desired result.
Color:
If(ThisItem.IsSelected, cmp_TimePicker.SelectedColor, Black)
HoverColor:
Self.Color
PressedColor:
Self.Color
Fill:
If(ThisItem.IsSelected, cmp_TimePicker.SelectedFill, Transparent)
HoverFill:
If(!ThisItem.IsSelected, ColorFade(cmp_TimePicker.SelectedFill, 70%))
PressedFill:
Self.HoverFill

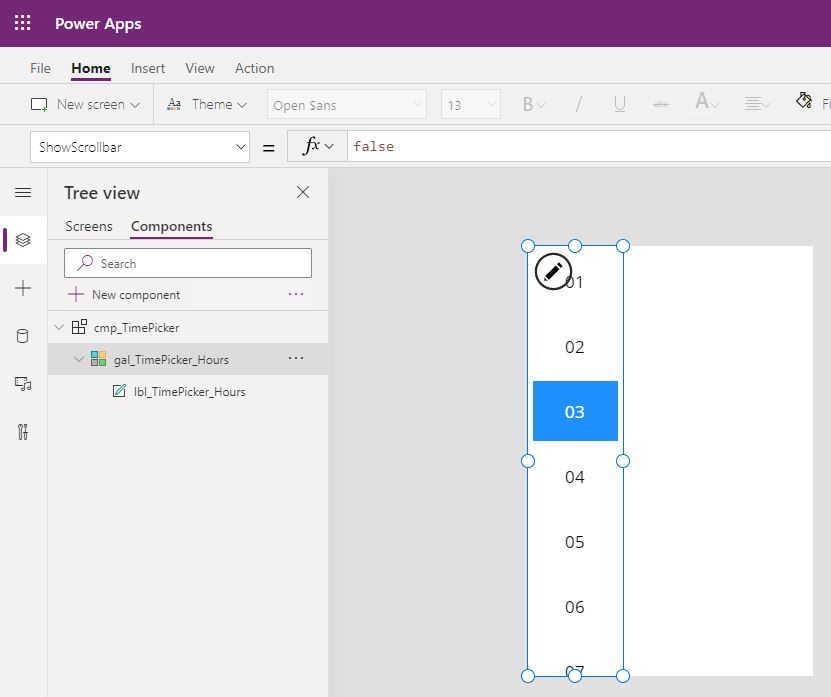

Finally, to hide the scrollbar change the ShowScrollbar property of the gallery to false. The Hours gallery is now completed.
Minutes & AM/PM Galleries

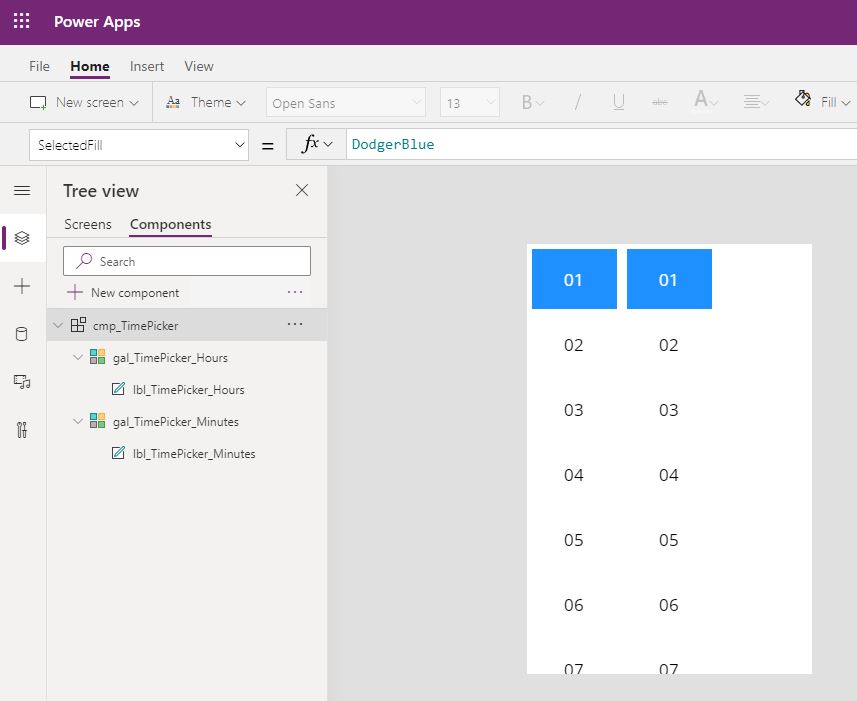

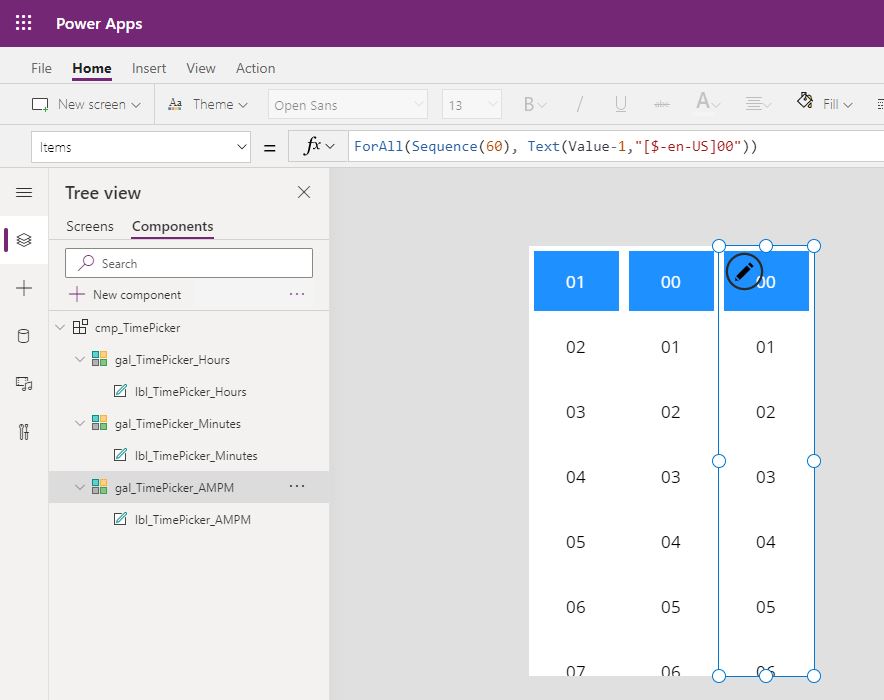

To create the minutes gallery copy & paste the hours gallery directly beside it. Rename the gallery to gal_TimePicker_Minutes.
Replace any code in the Items property with this code to generate the minutes values from 00 to 59.
ForAll(Sequence(60), Text(Value-1,"[$-en-US]00"))
To create the AM/PM gallery copy and paste once more and rename the gallery to gal_TimePicker_AMPM.
Put this code in the Items property of the gallery instead.
["AM","PM"]

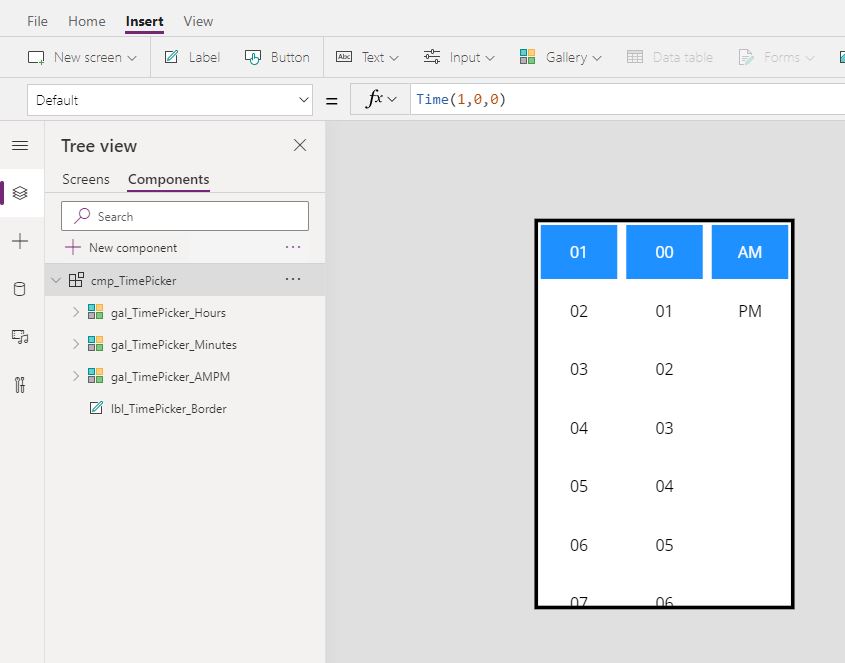

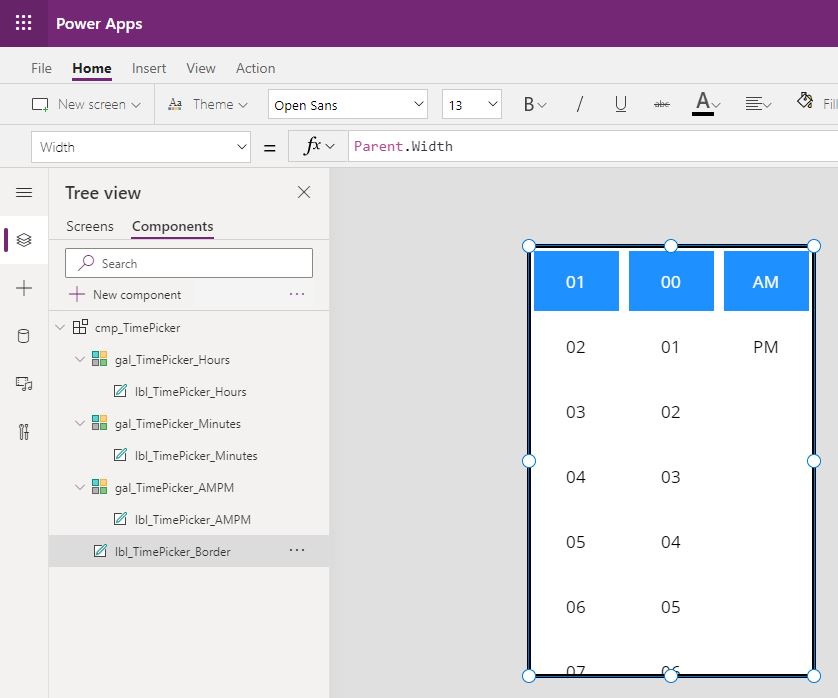

With all of the galleries created the last control to add is a label called lbl_TickerPicker_Border which will act as a border. Make sure the label is at the bottom of the tree view.
Use this code in the following properties of the label.
BorderColor: Black
BorderThickness: 4
Height: Parent.Height
Width: Parent.Width
X: 0
Y: 0
Output A Time Value
Our component needs to output a time value once a user makes their selection. To do this click and highlight all three galleries…

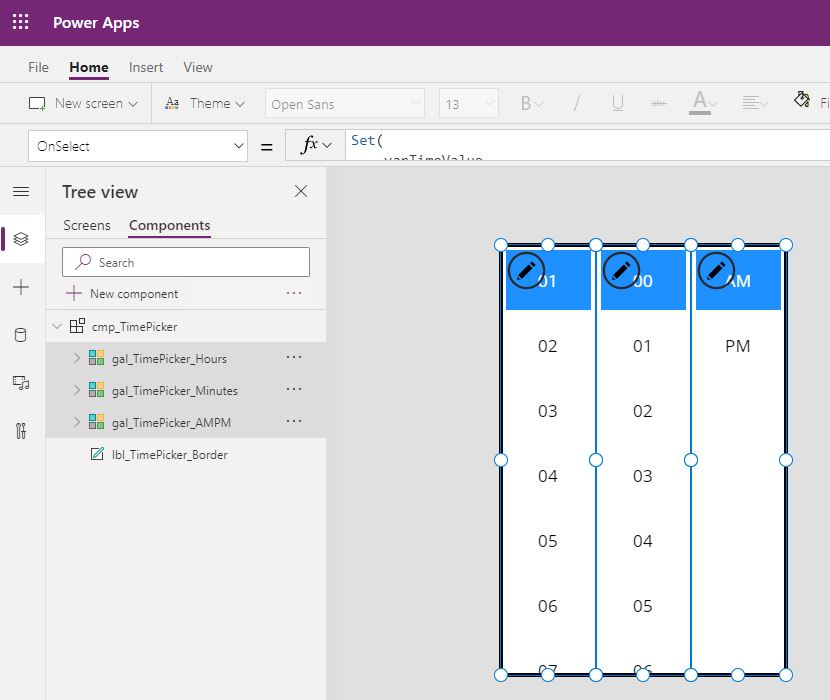

… then write this code in the OnSelect property to set a variable to store the time.
Set(
varTimeValue,
Time(
Value(gal_TimePicker_Hours.Selected.Value)
- If(
Value(gal_TimePicker_Hours.Selected.Value)=12, 12)
+ If(
gal_TimePicker_AMPM.Selected.Value = "PM",
12,
0
),
Value(gal_TimePicker_Minutes.Selected.Value),
0
)
)
Now when you click on values in the gallery the time will be updated. To see how it works you can temporarily put a label inside the gallery with varTimeValue as the Text property. Delete the label once you’re done testing.

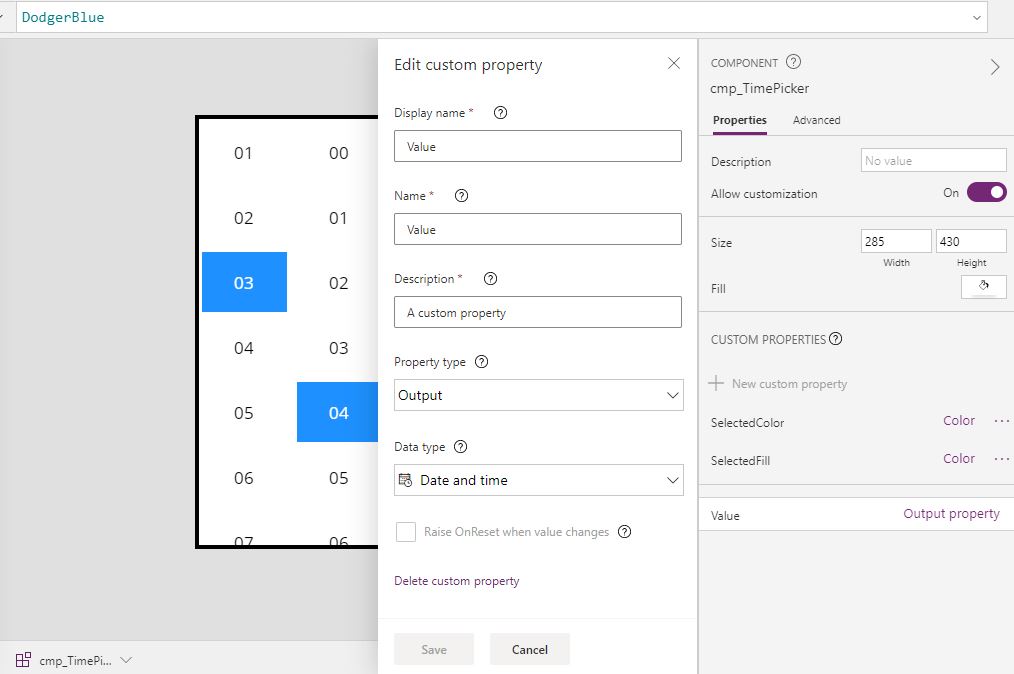

Create a new property called Value to give the ability to reference your time value in the app.
Then put this code in the Value property of cmp_TimePicker.
varTimeValue
Positioning Gallery Items
When the hours, minutes or AM/PM are clicked inside the gallery I want them to snap to the top of the component. We will need a new property called Default to accomplish this. Make sure to check the box that says Raise OnReset when value changes.

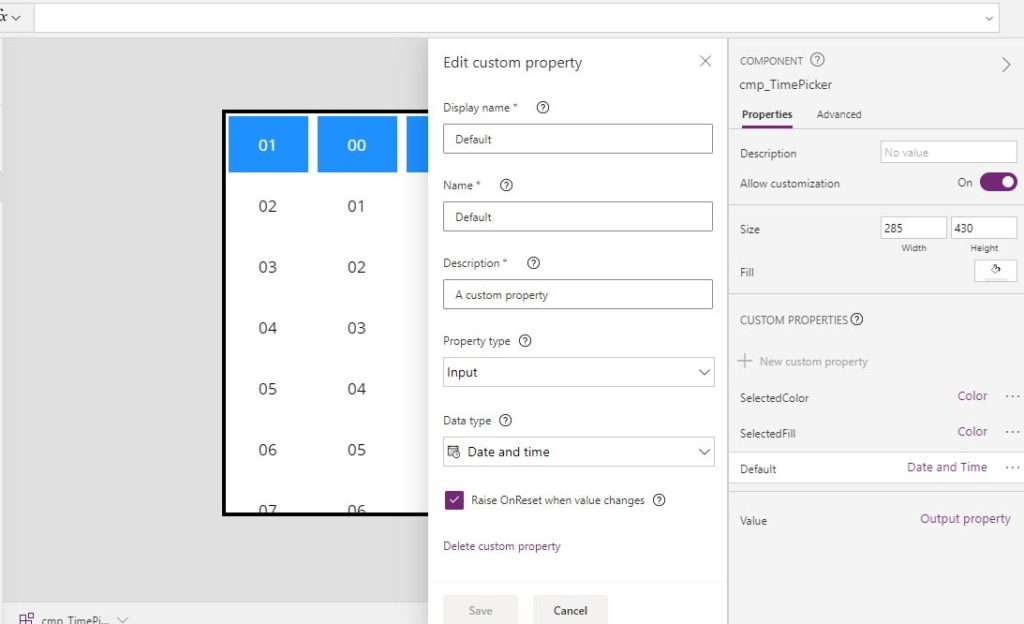

The Default value of cmp_TimePicker should be 01:00 AM unless otherwise defined. Do this by using Time(1, 0, 0) in the property.
Next comes some fairly complex code to define the selection positioning for each gallery. Put this code in the Default property of the Hours gallery.
If(
cmp_TimePicker.Default=Blank()
And varTimeValue=Blank(),
// value when no default is supplied
{Value: "01"},
// value when default is supplied or hours were clicked
With(
{
wTime: Coalesce(
varTimeValue,
cmp_TimePicker.Default
)
},
LookUp(
Self.AllItems.Value,
Value = Text(
If(Mod(Hour(wTime),12)=0,12, Mod(Hour(wTime),12)),
"[$-en-US]00"
)
)
)
)
Then write this code in the Default property of the Minutes gallery.
With(
{
wTime: Coalesce(
varTimeValue,
cmp_TimePicker.Default
)
},
LookUp(
Self.AllItems.Value,
Value = Text(
Minute(wTime),
"[$-en-US]00"
)
)
)
And use this code in the Default property of the AMPM gallery.
With(
{
wTime: Coalesce(
varTimeValue,
cmp_TimePicker.Default
)
},
If(
Hour(varTimeValue) < 12,
{Value: "AM"},
{Value: "PM"}
)
)When the user clicks the gallery we must reset it in order to show the clicked values at the top. Put this code in the OnReset property of cmp_TimePicker to do just that.
Reset(gal_TimePicker_Hours);
Reset(gal_TimePicker_Minutes);
Reset(gal_TimePicker_AMPM);
Set(varTimeValue, Blank())

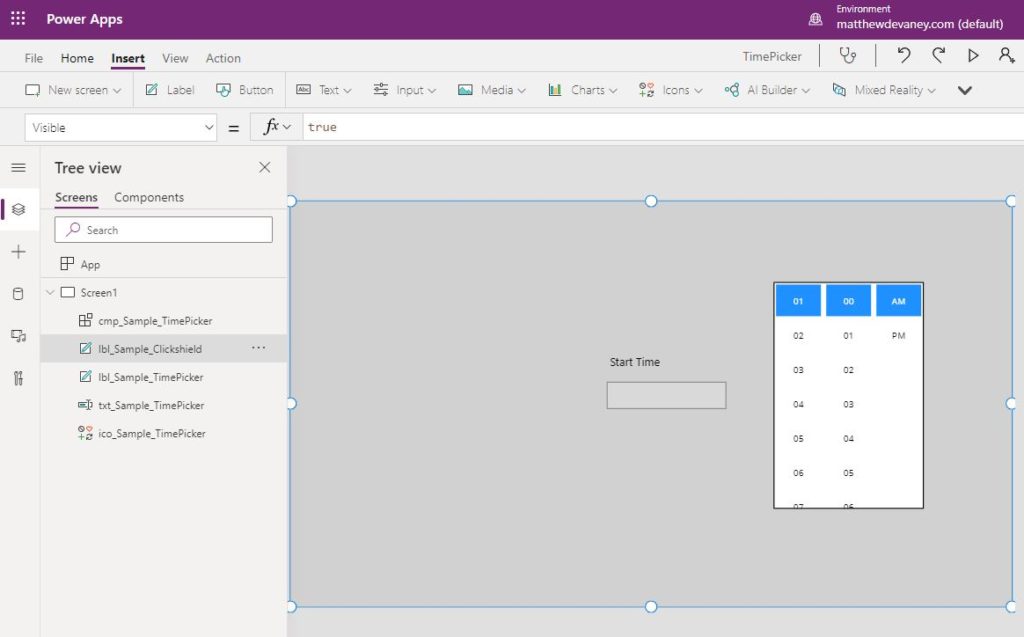

Using The Time Picker In An App

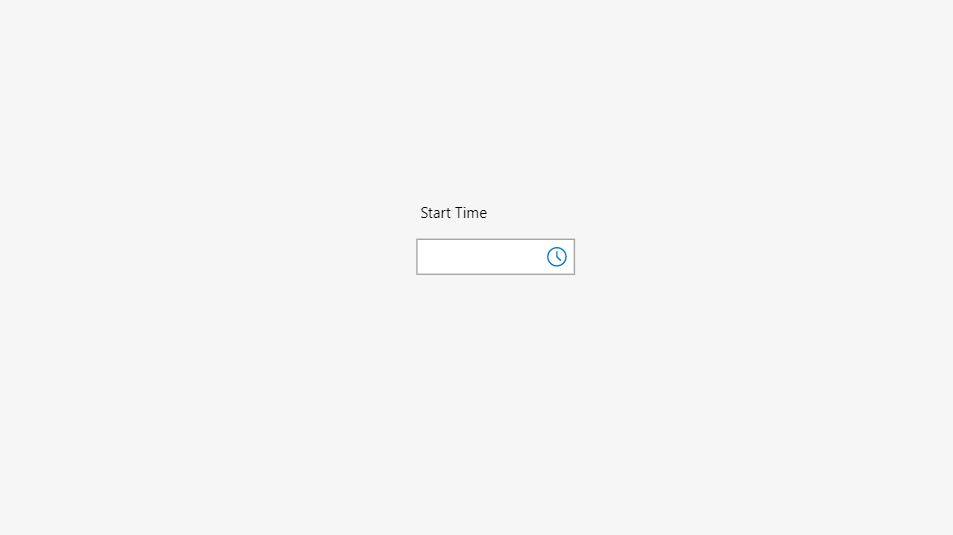

Now that we’ve completed the component lets try using it in an app. Place a new text box on the screen that we can display the time value in. I’ve added a clock icon to this text box to indicate a time value.
Add the Time Picker component and position it beside the text box.
To show the selected time inside the text input copy & paste this code into the text input’s Default property.
Text(cmp_Sample_MobileTimePicker.Value, ShortTime)
Insert a new label onto the screen to act as an overlay. When the user clicks it the component should disappear. Make sure the label is above the text input and below the Time Picker in the tree view.
Put this code in the following properties for the overlay.
OnSelect: Set(varShowTimePicker, false)
Visible: varShowTimePicker
Use this code in the OnSelect property of the Text Input.
Set(varShowTimePicker, true)
Then change the Visible property of the Time Picker to this code.
varShowTimePicker

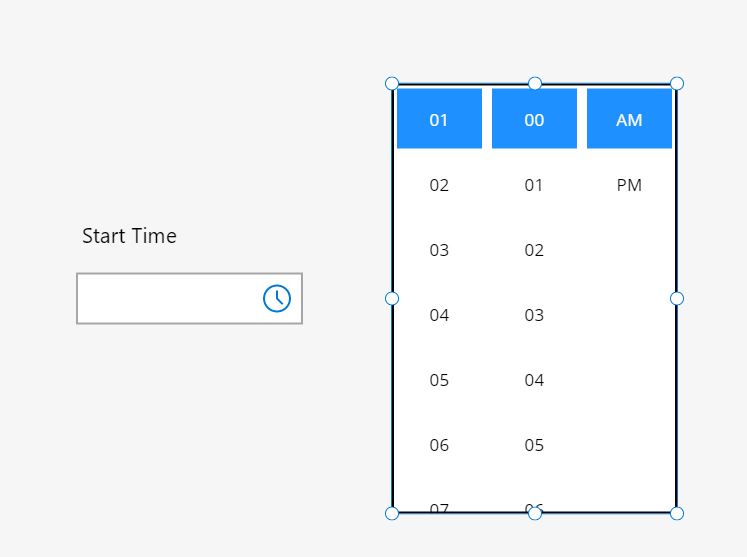

All of your hard work has paid-off. Now you have an awesome looking reusable time picker.
