Power Automate List Rows In A Dataverse View

Power Automate can be used to list the rows in a Dataverse view. Views are a saved query which can select specific columns, filter based upon a set of criteria, and sort the results. The best part is you can configure them with no coding knowledge required. Then it’s possible to use the Dataverse view in a Power Automate flow.

Table of Contents
• Introduction: The Redmond Accounts Automation
• Create A Dataverse View For The Accounts Table
• Download Fetch XML For The Dataverse View
• Include Fetch XML In The Dataverse List Rows Action
• Run The Power Automate Flow To Get A Dataverse View
• Get Dataverse View In Power Automate Using The View Name
• Test The Power Automate Flow To Get A Dataverse System View

Introduction: The Redmond Accounts Automation

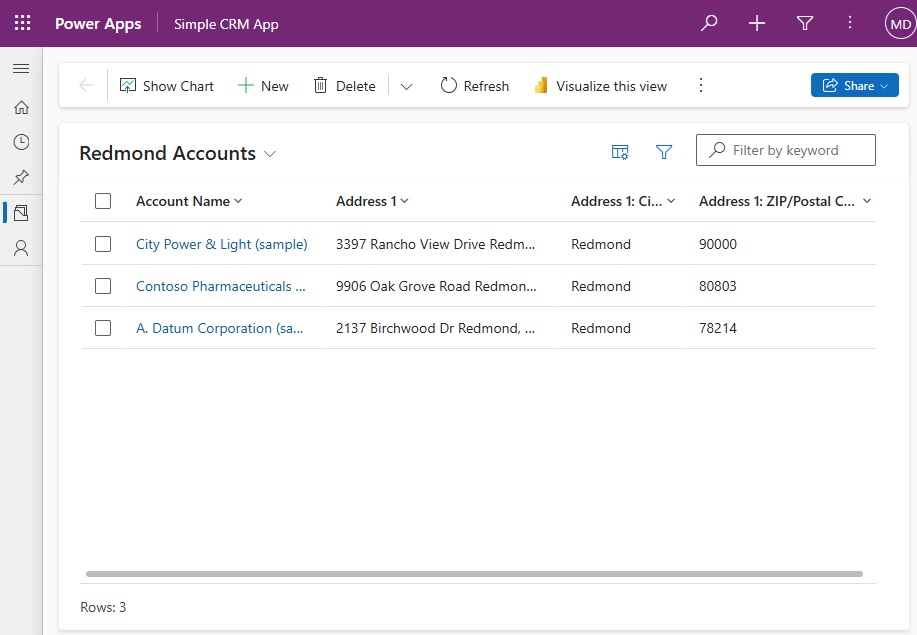

A Dataverse view named Redmond Accounts is found in the Accounts table within a model-driven app. The view to shows only Accounts having a city of Redmond.

A Power Automate flow uses the view to get the same list of rows as the view.

Create A Dataverse View For The Accounts Table

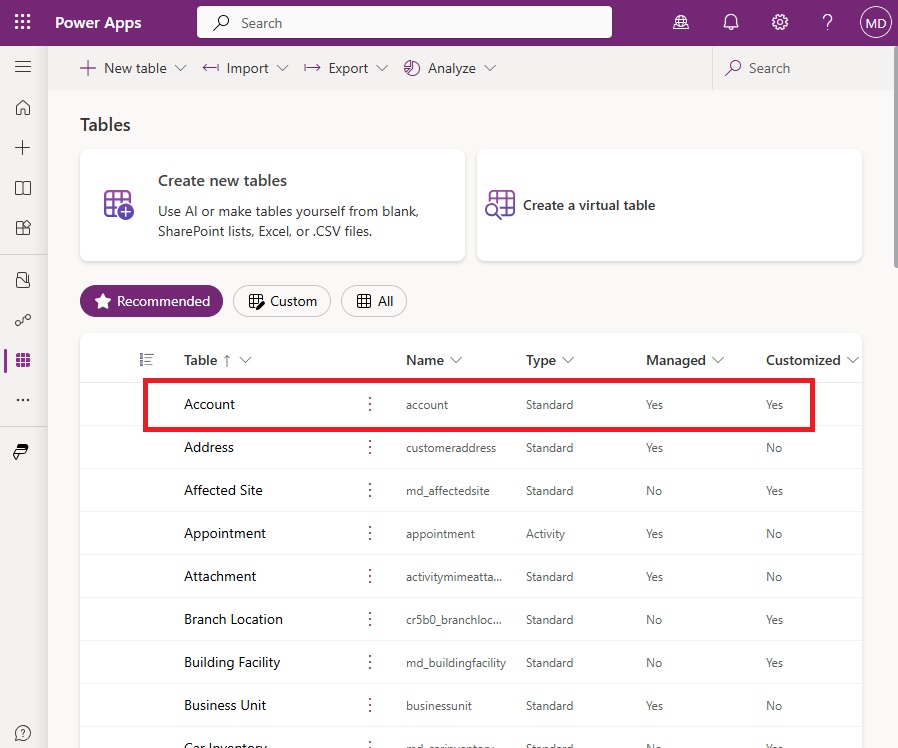

We need to setup a new system view to call from a Power Automate flow. Go to the maker portal, open the Tables menu and select the Account table.

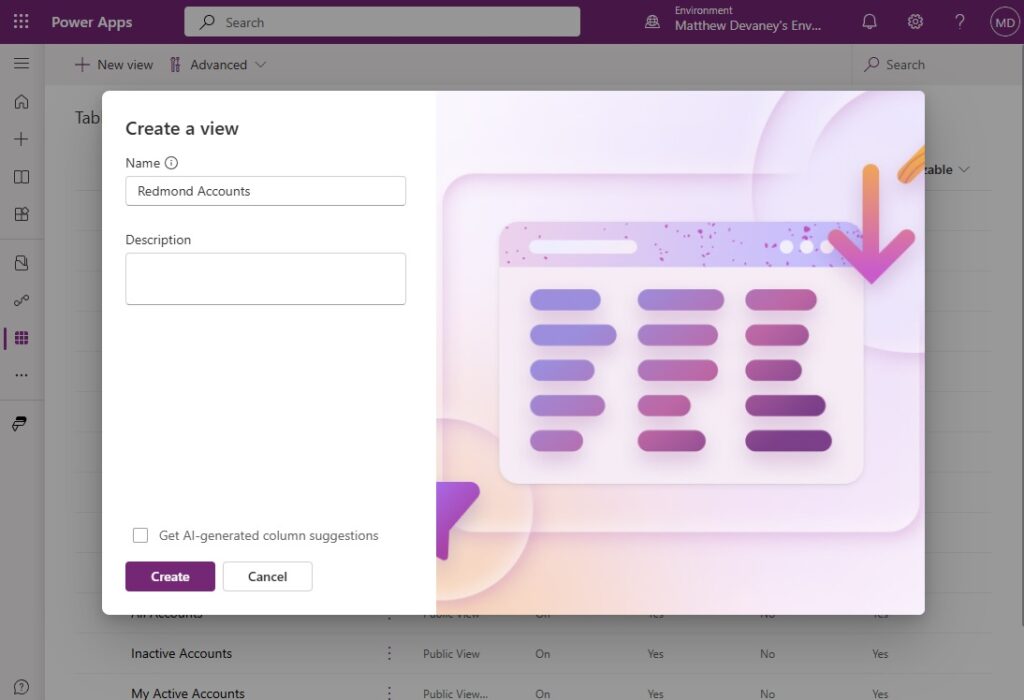

Create a new view named Redmond Accounts.

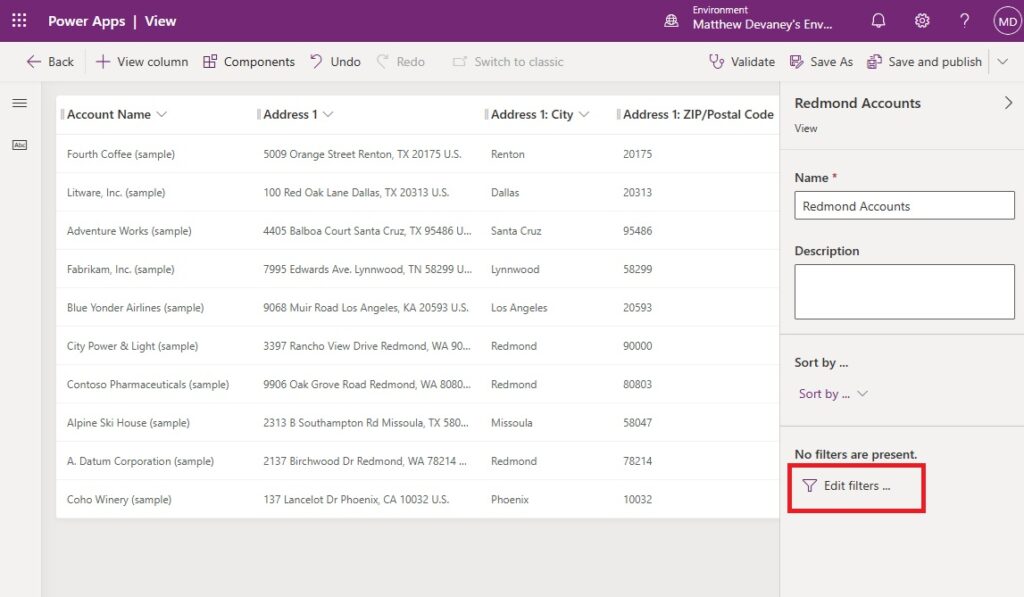

Include the following columns and then select Edit Filters:

• Account Name
• Address 1
• Address 1: City
• Address 1: ZIP/Postal Code

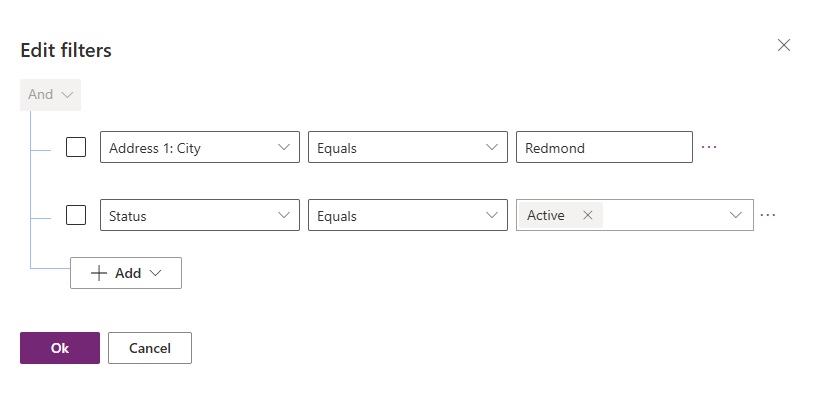

Apply the following filters, press OK, then Save & Publish the view:

• Address 1: City = Redmond
• Status = Active.

Download Fetch XML For The Dataverse View

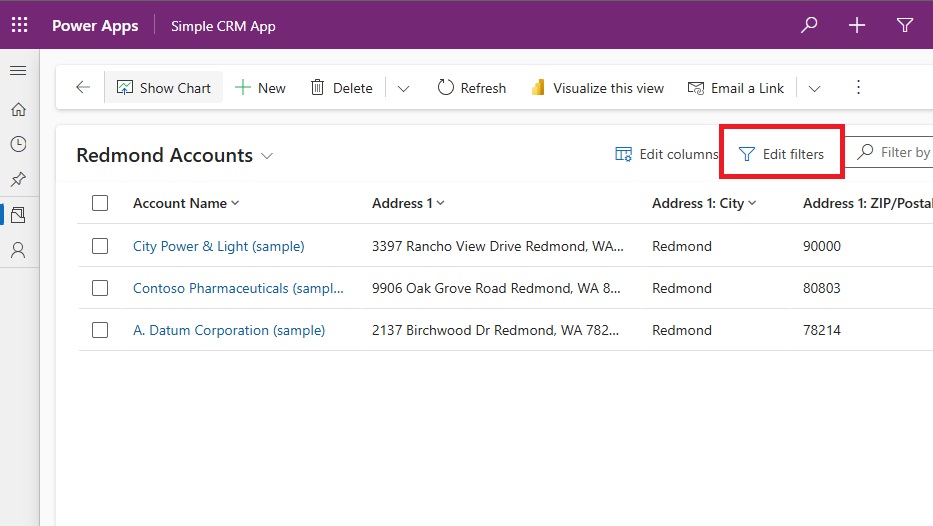

Dataverse views use a query language named Fetch XML. We can use a query’s Fetch XML in a flow to get the same results. Open the Accounts table within a model-driven app, select the Redmond Accounts view, and then go to Edit Filters.

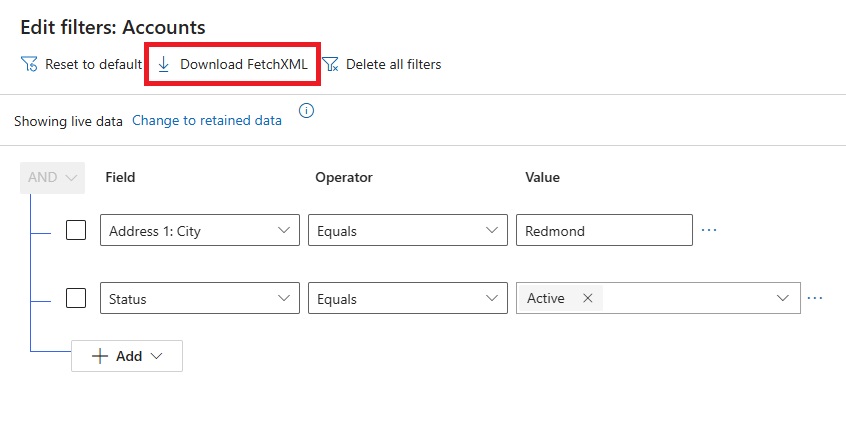

Download the FetchXML.

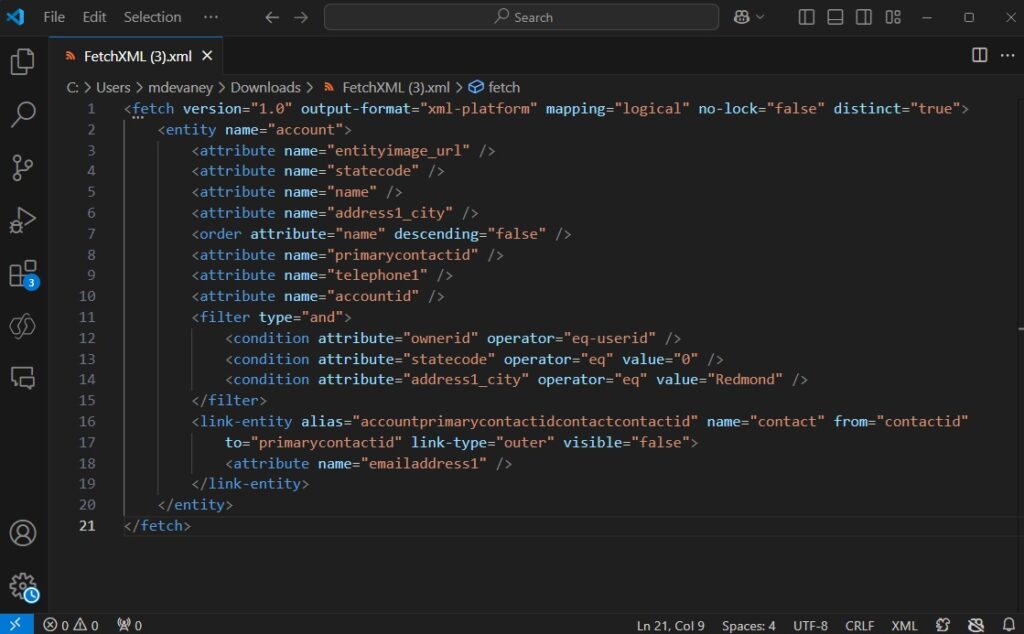

The Fetch XML output looks like this. We will use the Fetch XML in the List Rows action of our Power Automate flow.

Include Fetch XML In The Dataverse List Rows Action

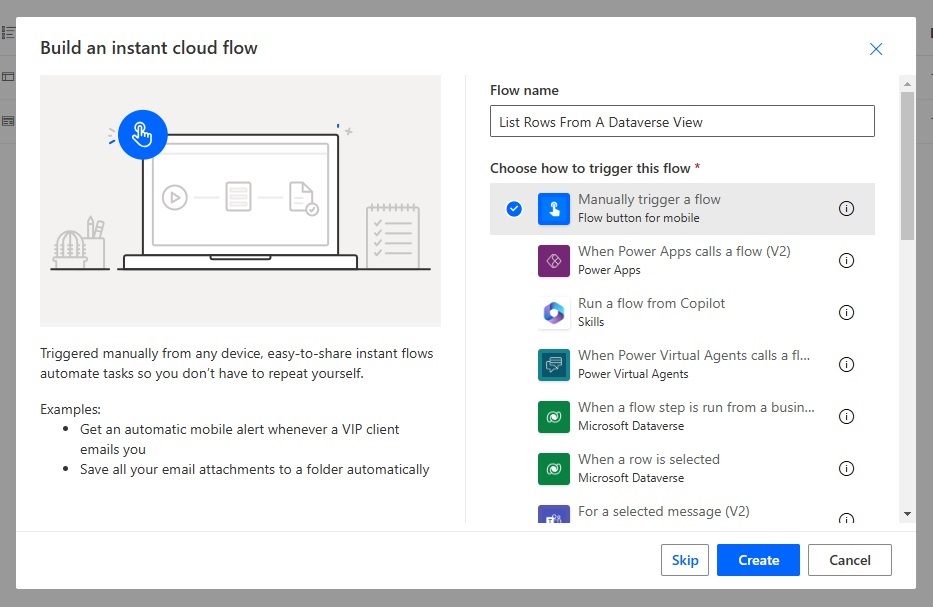

Create a new instant flow named List Rows From A Dataverse View.

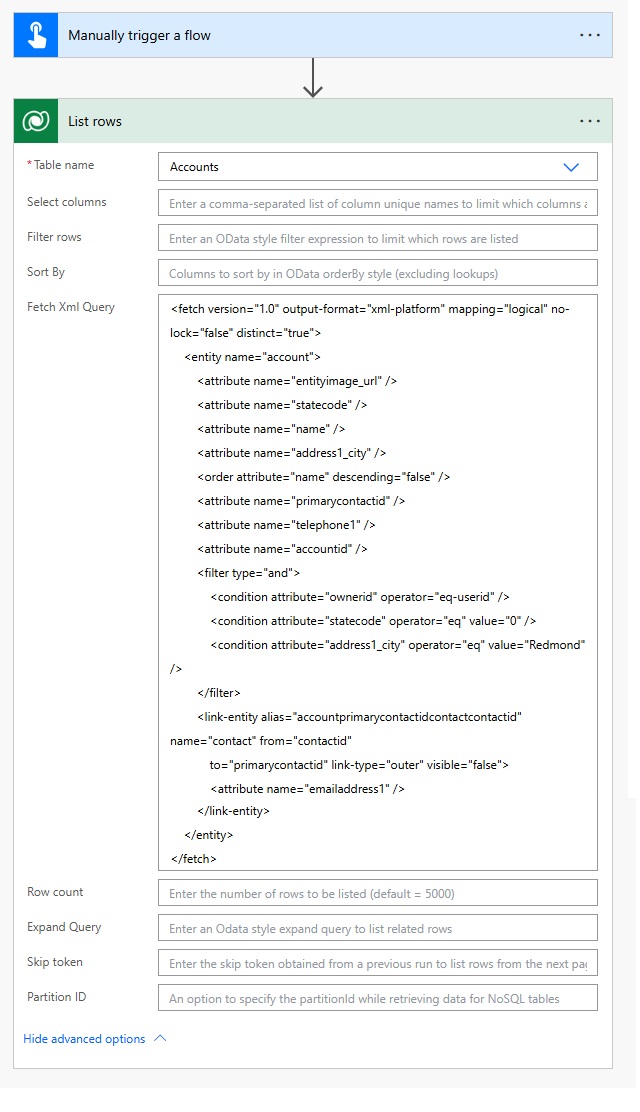

Add a Dataverse – List Rows Action to the Power Automate flow. Select the Accounts table and copy & paste the Redmond Accounts Fetch XML into the Fetch XML Query field.

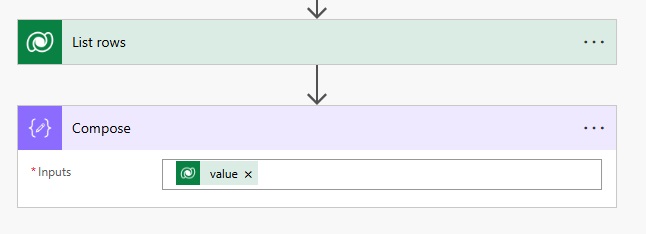

Then add a Compose action with the value of the List Rows action so we can view the query results.

Run The Power Automate Flow To Get A Dataverse View

We’re done building the flow. Test the flow to ensure it works.

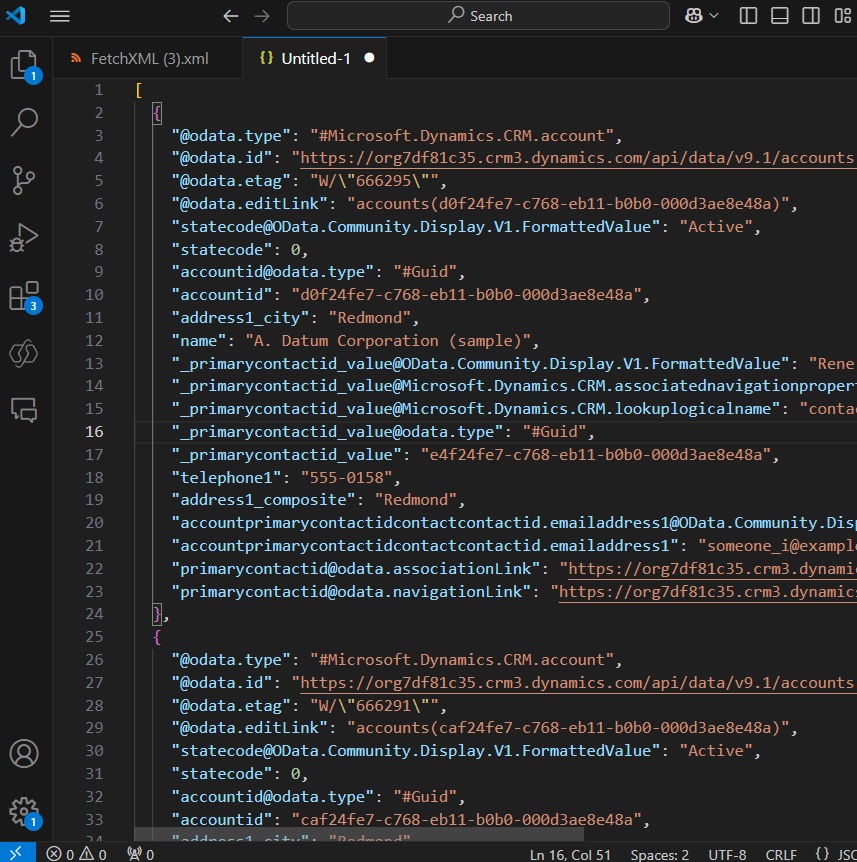

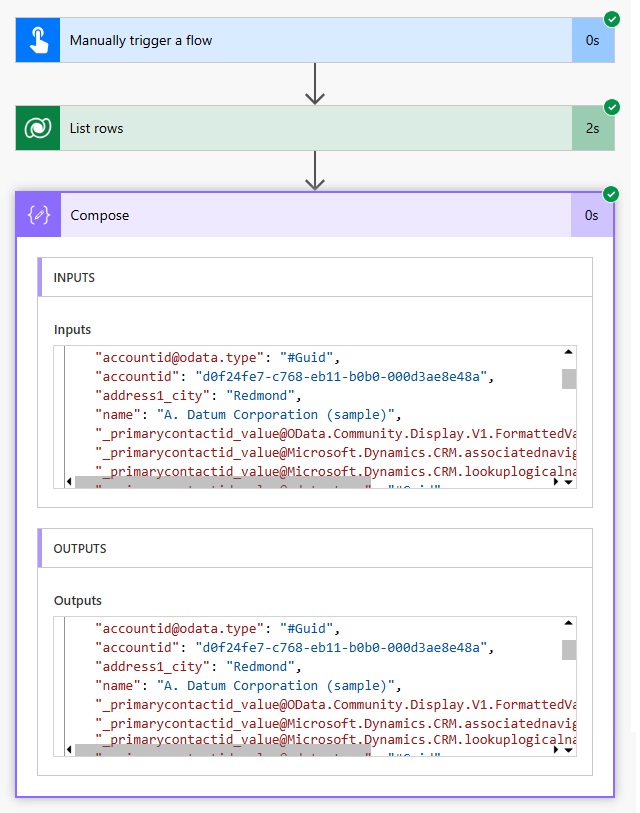

The flow outputs all of the rows from the Redmond Accounts Dataverse View.

Get Dataverse View In Power Automate Using The View Name

An alternate way to get the list of rows in a Dataverse view is to lookup the query name in Power Automate and fetch the results. The benefit of doing this is the flow will be automatically updated when the query is changed.

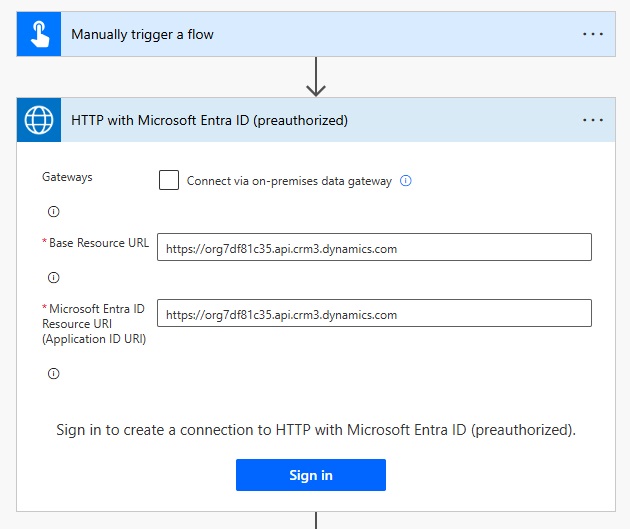

To do this, add an HTTP With Microsoft Entra ID (preauthorized) – Invoke An HTTP Request action to the flow.

Input the following URL for the Base Resource URL and Microsoft Entra ID Resource URI.

https://org7df81c35.api.crm3.dynamics.com

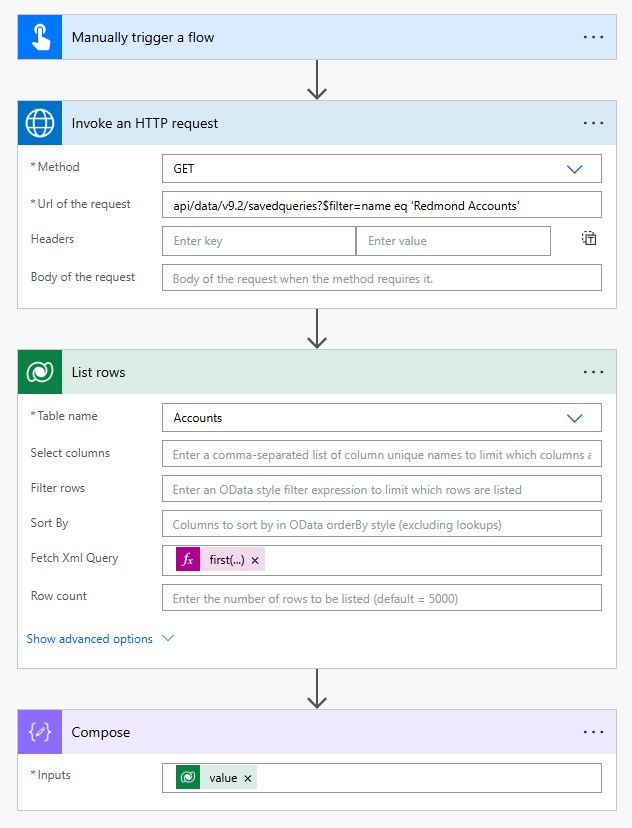

Then add a Dataverse List Rows action and a Compose action to the flow as shown below.

Choose this method in the Invoke An HTTP Request action.

GET

Use this url of the request.

api/data/v9.2/savedqueries?$filter=name eq 'Redmond Accounts'

And fill-in the Fetch Xml Query parameter of the List Rows action with this flow expression.

first(body('Invoke_an_HTTP_request')?['value'])?['fetchxml']

Test The Power Automate Flow To Get A Dataverse System View

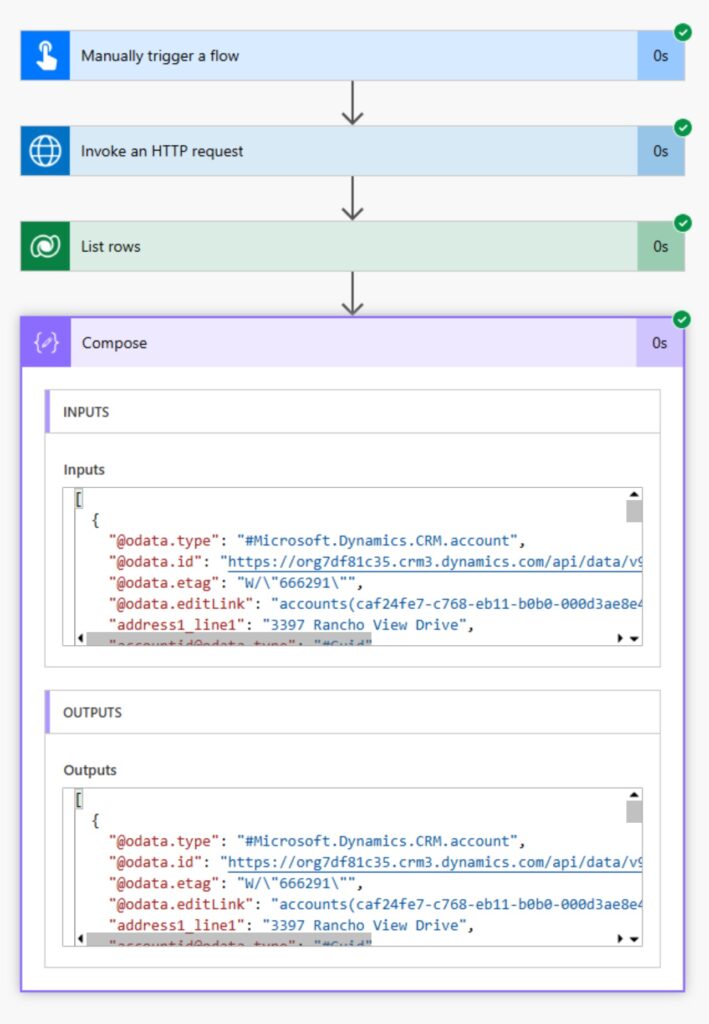

Run the flow once more to verify it completes successfully.

Rows from the Redmond Accounts Dataverse view are fetched from the Accounts table.
